American DJ Dotz Par - LED COB Par Can

• High output slim low profile Par fixture with one TRI (3-IN-1) RGB COB LED

• COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color

• Use as Wash/par or Pixel Mapped for a stunning visual effect

• 5x Operational modes: Auto Run, Sound Active, Color Macro, Dimmer, and DMX Controlled Mode

• 4 DMX channel modes: 3, 4, 5 or 9 channel

• Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss

• Built-In preset colors and programs

• Flicker Free operation (No flickering on camera)

• 32 built-in Color Macros

• LED pulse and strobe effect

• Electronic Dimming: 0 - 100%

• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)

• Beam angle: 60-degrees (25-degrees with supplied lens kit)

• 3-pin XLR chassis mount connectors for DMX linking
• With Wired Digital Communication Network

• IEC AC IN/OUT to daisy chain power (up to 10 Dotz Par’s @ 120V and 22 Dotz Par’s @ 230V)

• Power Draw: 36W total (All LEDs @ Full On)
• Power Cable Length: 1.8M (IEC)

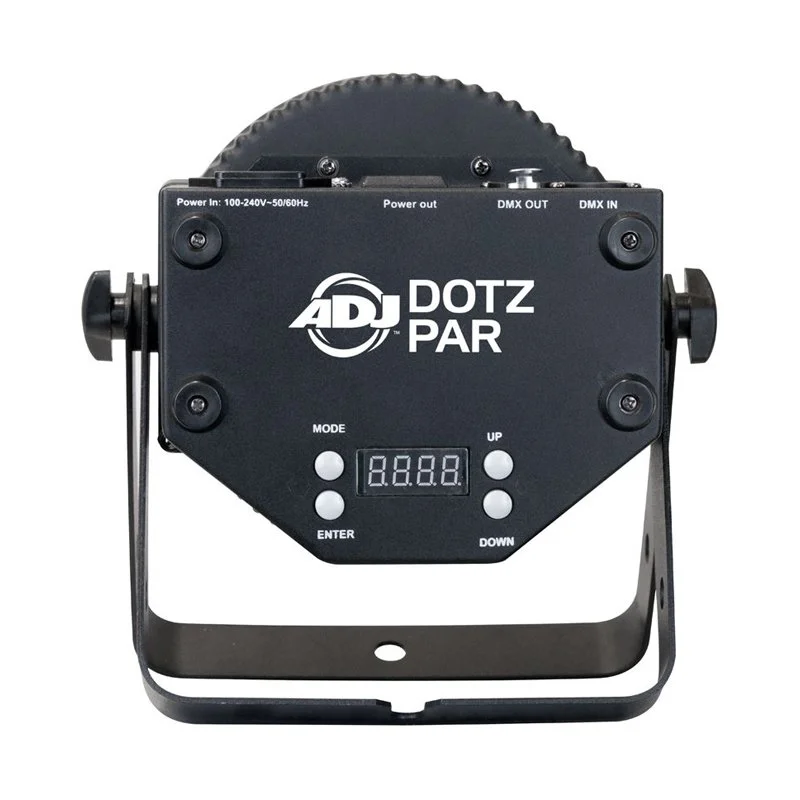

• 4-button LCD DMX display on rear panel

• Compatible with ADJ Par RF wireless remote control (sold separately)

• Single yoke allows fixture to be mounted

• Light Source: 1x 36-Watt COB TRI LED (RGB: 3-IN-1, rated at approximately 50,000 hrs)

• Light output: LENS ON: 970 LUX @2M; 266 LUX @4M (25-degree beam), LENS OFF: 130 LUX @2M; 36 LUX @4M (60-degree beam)
• Refresh Rate: 3.6KHz
• Auto sensing power supply: AC 100V/60Hz - 240V/50Hz

• Dimensions (LxWxH): 6. 5” x 4.5” x 6.5”/ 165 x 114 x 165mm (Without Bracket) / 8.25” x 4.5” x 8.75” / 209 x  114 x 222mm (With Bracket)

• Weight: 5 lbs. / 2 kgs.
• ETL Approved

UPC: 819730012302
