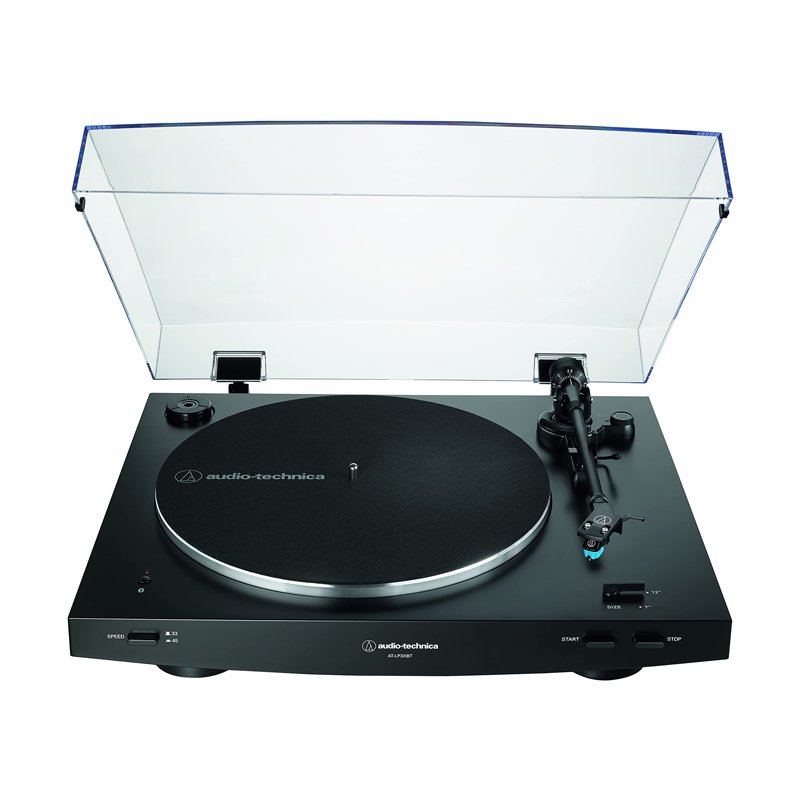

Image 1 of 1
Features
Fully automatic belt-drive turntable operation with two speeds: 33-1/3, 45 RPM
High-fidelity audio with Bluetooth wireless technology
Connects wirelessly to speakers and other devices equipped with Bluetooth wireless technology or to wired audio systems and powered speakers via included dual RCA output cable
Compatible with the high-quality Qualcomm® aptX Adaptive audio and Qualcomm® aptX™ audio codecs
Balanced straight tonearm with hydraulically damped lift control and rest
AT-VM95C cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
Includes the AT-HS3 universal headshell
Built-in switchable phono/line pre-amplifier with detachable dual RCA output cable with grounding wire
Anti-resonance, die-cast aluminum platter with felt mat
Damped base construction for reduced low-frequency feedback coloration
External AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
Included Accessories: detachable RCA output cable (Dual RCA male to dual RCA male with ground), 45 RPM adapter, removable hinged dust cover, and detachable power cable
Available in black (AT-LP3XBT-BK) and white (AT-LP3XBT-WH)
Specifications
Communication Specifications
Communication System - Bluetooth version 5.2
RF Output - 2.5 mW EIRP
Maximum Communication Range - Line of sight - approx. 10 m (33')
Frequency Band - 2.402 GHz to 2.480 GHz
Modulation Method - GFSK, Pi/4DQPSK, 8DPSK
Compatible Bluetooth Profiles - A2DP
Supported Codecs - Qualcomm® aptXTM Adaptive audio, Qualcomm® aptXTM audio, SBC
Turntable Specifications
Type - Belt-drive, fully automatic operation
Motor - DC motor
Drive Method - Belt drive
Speeds - 33-1/3 RPM, 45 RPM
Turntable Platter - Die-cast aluminum
Wow and Flutter - < 0.2 % WRMS (33 RPM) at 3 kHz
Signal-to-Noise Ratio - > 60 dB
Output Level
PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec
LINE: 252 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain - 36 dB nominal, RIAA equalized
Tonearm Specifications
Type - Static balanced straight tonearm
Effective Length - 221.5 mm
Overhang - 19 mm
Maximum Tracking Error Angle - Less than 3.0°
Stylus Pressure Adjustment Range - 1 to 4 g
Applicable Cartridge Weight Range (including headshell) - 14.5 to 20 g
Cartridge and Headshell Specifications
Cartridge Model - AT-VM95C
Cartridge Type - VM
Recommended Load Impedance - 47,000 ohms
Output Voltage - 4.0 mV (1kHz, 5cm/sec)
Stylus - 0.6 mil bonded conical
Cantilever - Aluminum pipe
Tracking Force Range - 1.8 to 2.2 g (standard 2.0 g)
Cartridge Weight - 6.1g (0.22 oz)
Headshell Model - AT-HS3BK
Headshell Weight
11.1 g (including lead wires)
10.3g (excluding lead wires)
Headshell Overhang Adjustment - ±8 mm
General Specifications
Power Supply Requirements - 100-240 V, 50Hz/60Hz, 0.6 A Max.
Power Consumption - 2 W
AC Adapter - 12 V, 0.5 A
Dimensions - 435.6mm (17") ×374 mm (15 ") ×128 mm (5.0") (W × D × H)
Weight - 5.0 kg (11 lbs)
Accessories Included
Dust cover
Felt mat
Platter (with drive belt)
Counterweight
Headshell (AT-HS3BK) with VM stereo cartridge (AT-VM95C)
45 RPM adapter
RCA audio cable (Approx. 1.0 m (3.3'))
AC adapter (Approx. 1.5 m (4.9'))
UPC: 4961310156770
