Specifications
DMX Channels:9
DMX Connectors:3-pin XLR
Light Source:(Swarm): 5 LEDs (1 red, 1 green, 1 blue, 1 amber, 1 white) 3 W, (300 mA), 50,000 hours life expectancy
(strobe): 8 LEDs (white) 1 W, (300 mA), 50,000 hours life expectancy
(laser): 520 nm/30 mW (green) laser diode, 650 nm/100 mW (red) laser diodeStrobe Rate:0 to 20 Hz
Beam Angle:(strobe): 17°
Field Angle:(strobe): 35°
Coverage Angle:(laser): 100°
(Swarm): 65°Illuminance:(strobe): 823 lux @ 2 m
Power Linking:15 units @ 120 V; 26 units @ 230 V
Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:62 W, 0.5 A @ 120 V, 60 Hz
62 W, 0.3 A @ 230 V, 50 HzWeight:9.8 lb (4.5 kg)
Size:9.75 x 11.7 x 12.2 in (248 x 298 x 310 mm)
Approvals:CE, FDA, RoHS, UKCA
Classified per EN/IEC 60825-
Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 56, dated May 8, 2019
What's Included

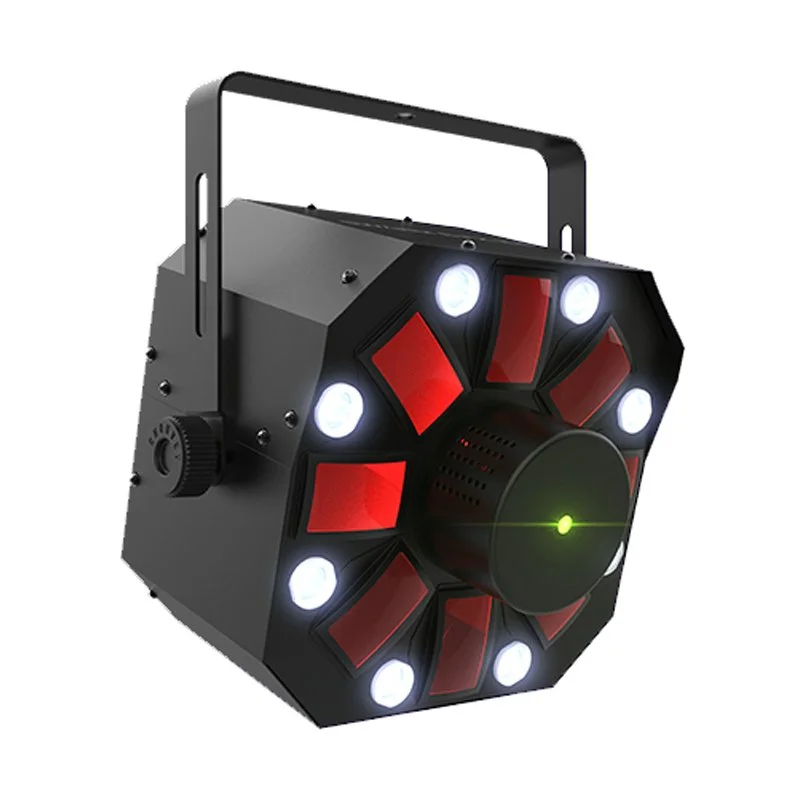

Swarm 5 FX ILS
Power cord
Key and Interlock (EU)
User Manual
