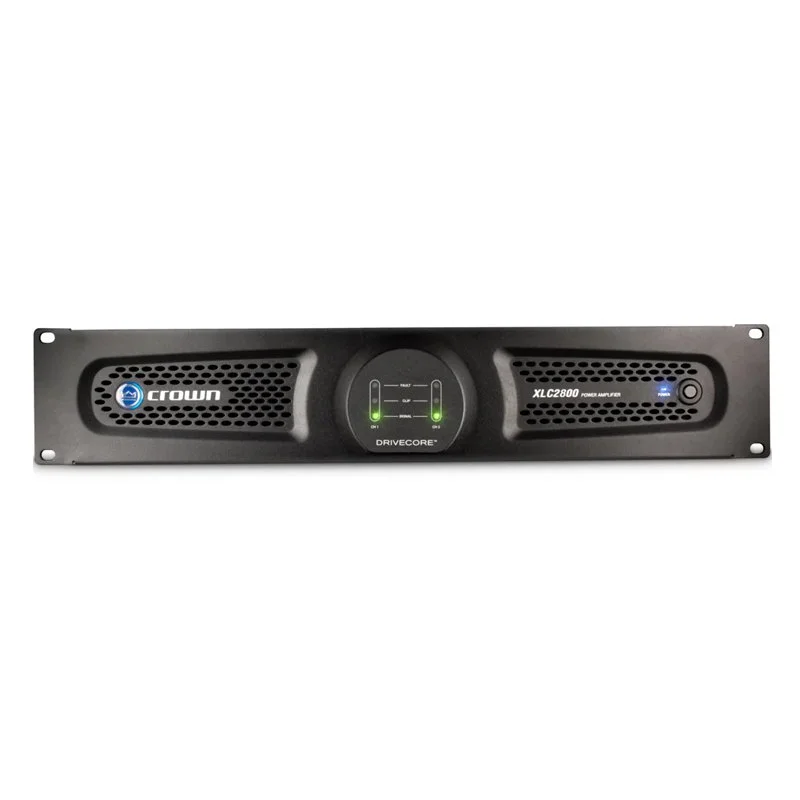

Image 1 of 1
Features
Some important features for cinema applications:
Two models of 500W (XLC2500) and 800W (XLC2800) per channel at 4-ohms
XLC Amplifiers are compatible with CXM2000 for monitor, fault detection and crossover functions
XLC Amplifiers are compatible with Crown Monitor System DSi-8M for monitor function
Power for 2-ohm, 4-ohm and 8-ohm outputs, supporting stereo and bridge outputs
Support parallel connection of cinema surround speaker
Indicators provide accurate diagnostics: Power, Signal, Clip and Fault
Volume control on rear panel of amplifiers
High performance, light weight
DriveCore based amplifier – weighs less than 14lbs (6 kgs)
Some important features for install applications:
Minimal front panel control; block connectors and controls on back of amplifiers
High performance lightweight DriveCore based amplifier for audiophile quality and extremely high reliability
Configurable input operation for stereo and parallel and bridge modes
Configurable output operation for stereo and bridge modes
Specifications
AC Line Voltage and Frequency Configurations Available: (+/- 10%) 100VAC 50/60 Hz, 110VAC 60 Hz, 220 and 230~240VAC 50 Hz
Voltage Gain: 42
Sensitivity: 1.4V (for full rated power at 4 ohms)
Signal to Noise Ratio (ref. rated power, 8 ohms, 1 kHz): > 103 dB
THD: <0.5%
Damping Factor (8 ohms, 10 Hz to 400 Hz): >200
Intermodulation Distortion (from full rated output to -30 dB): <0.3%
Frequency Response (at 1W, 20 Hz - 20 kHz): -1 dB
Crosstalk: >85 dB (below rated 8 ohms power, at 1 kHz); >55 dB (below rated 8 ohms power, at 20 kHz)
Input Impedance (nominal): 20 kilohms balanced, 10 kilohms unbalanced
Load Impedance: 2~8 ohms per channel in Stereo; 4~8 ohms in Bridge
Dimensions: 19" x 3.5" x 10.4" (48.3cm x 8.9cm x 26.4cm)
Weight: 10.4 lbs (4.72 kg)
Shipping Weight: 13.2 lbs (6 kg)
IEC Power Connector: 15A
UPC: 871015007809
