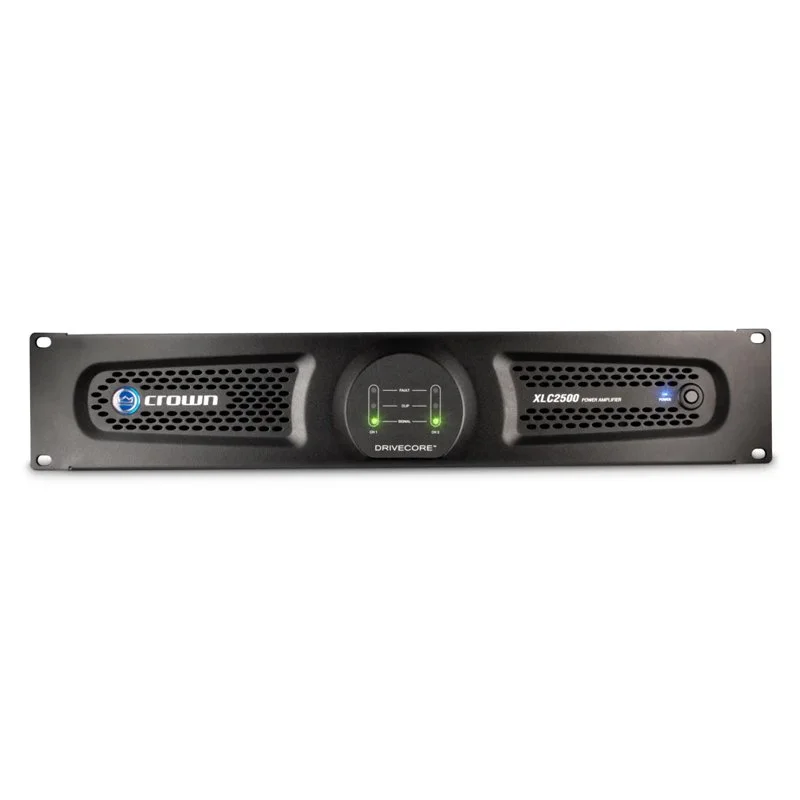

Image 1 of 1
Features
Some important features for cinema applications:
Two models of 500W (XLC2500) and 800W (XLC2800) per channel at 4-ohms
XLC Amplifiers are compatible with CXM2000 for monitor, fault detection and crossover functions
XLC Amplifiers are compatible with Crown Monitor System DSi-8M for monitor function
Power for 2-ohm, 4-ohm and 8-ohm outputs, supporting stereo and bridge outputs
Support parallel connection of cinema surround speaker
Indicators provide accurate diagnostics: Power, Signal, Clip and Fault
Volume control on rear panel of amplifiers
High performance, light weight
DriveCore based amplifier – weighs less than 14lbs (6 kgs)
Specifications
AC Line Voltage and Frequency Configurations Available: (+/- 10%) 100VAC 50/60 Hz, 110VAC 60 Hz, 220 and 230~240VAC 50 Hz
Voltage Gain: 35
Sensitivity: 1.4V (for full rated power at 4 ohms)
Signal to Noise Ratio (ref. rated power, 8 ohms, 1 kHz): > 103 dB
THD: <0.5%
Damping Factor (8 ohms, 10 Hz to 400 Hz): >200
Intermodulation Distortion (from full rated output to -30 dB): <0.3%
Frequency Response (at 1W, 20 Hz - 20 kHz): 0 dB
Crosstalk: >85 dB (below rated 8 ohms power, at 1 kHz); >55 dB (below rated 8 ohms power, at 20 kHz)
Input Impedance (nominal): 20 kilohms balanced, 10 kilohms unbalanced
Load Impedance: 2~8 ohms per channel in Stereo; 4~8 ohms in Bridge
Dimensions: 19" x 3.5" x 8" (48.3cm x 8.9cm x 20.6cm)
Weight: 8.3 lbs (3.75 kg)
Shipping Weight: 10.7 lbs (4.85 kg)
IEC Power Connector: 15A
UPC: 871015007762
