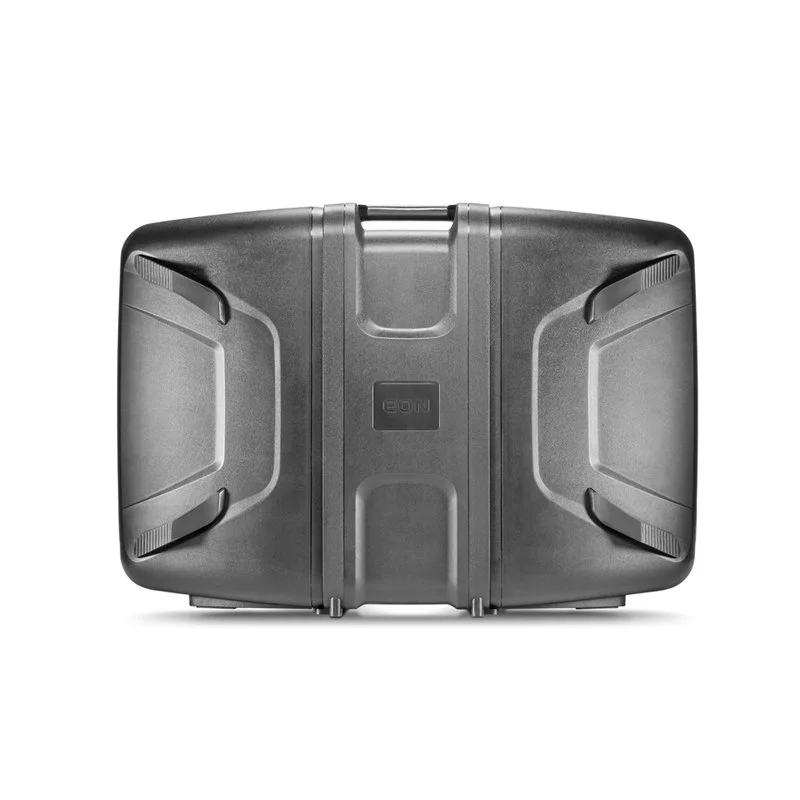

JBL EON 208P

Specifications

• System Type: Portable 2-way full-range loudspeakers with powered mixer

• Maximum SPL Output: 121 dB peak

• Frequency Range (-10 dB): 60 Hz - 20 kHz

• Frequency Response (+/-3 dB): 70 Hz - 18 kHz

• AC Input: 100-120 V, 220-240 V 50/60 Hz

• Amp Design: Class D

• System Power Rating: 300 W (2x 150 W stereo)

• Output Connector: 2 x 1/4" TS (unbalanced) amplifier outputs

• Channels: 1-4: XLR/1/4" jack combo connectors 5-6: one pair of 1/4" balanced TRS jacks (stereo), and one pair of RCA jacks (stereo) 7-8: one pair of 1/4" balanced TRS jacks (stereo), and a 3.5mm stereo jack

• Phantom Power: CH1 and CH2 have phantom power control and share the same selection switch

• Hi-Z Selection: CH3 has a Hi-Z selection switch used for guitar signal input

• Mixer Output Connectors: Monitor Out: one pair of RCA jacks (stereo), and one pair of 1/4" balanced TRS jacks (stereo)

• Headphone Out: 3.5mm stereo jack Subwoofer Out: 1/4" balanced TRS jack

• Treble/Bass EQ: Per-channel high- and low-shelf filters; +/- 12dB cut and boost

• System Limiter: On-board DSP limiting

• LF Driver: 1x JBL 8" (203mm) woofer

• HF Driver: 1x 1" Neodymuim black aluminum dome tweeter

• Coverage Pattern: 100° horizontal x 60° vertical

• Crossover Frequency: 2 kHz

• Crossover Type: 2-way passive network, 2nd order filters (12dB cutoff per octave)

• Enclosure: Polypropylene

• Suspension/Mounting: 36 mm pole socket

• Handles: One on top

• Speaker Grille: Powder-coated perforated steel

• Shipping Package (HxWxD): 22.6" (575 mm) x 30.5" (775 mm) x 15.7" (400 mm)

• Net Weight: 38.8 lbs (17.6 kg)
