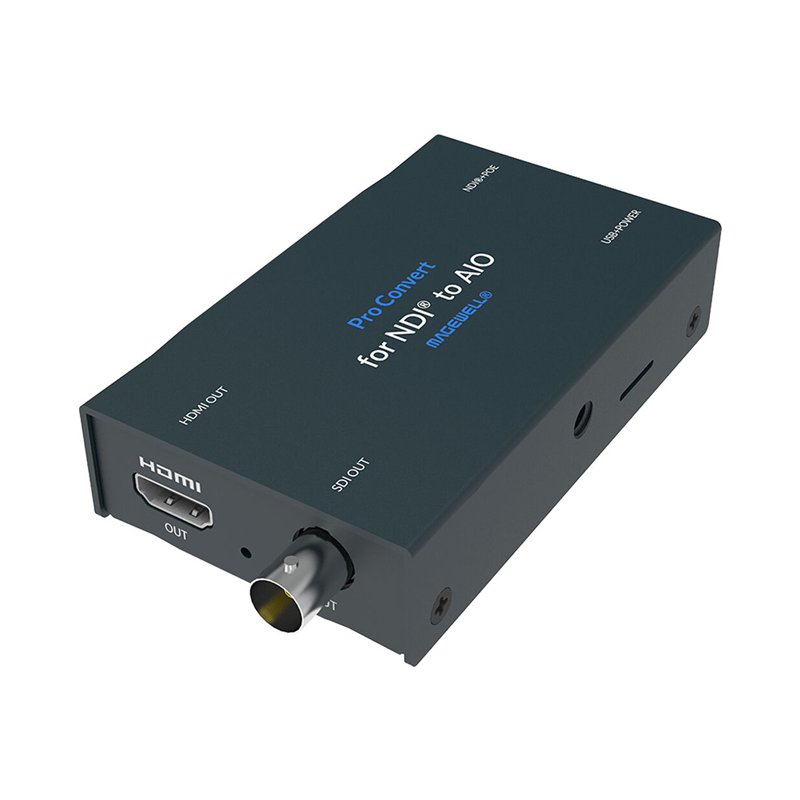

Magewell Pro Convert AIO RX NDI Decoder, 64210

Convert NDI® stream to HD HDMI and/or 3G SDI signal

Pro Convert AIO RX Specifications

Supported Web Browser

• Microsoft Internet Explorer 11

• Microsoft Edge

• Mozilla Firefox version 61 and above

• Google Chrome version 49 and above

• Apple Safari 11.1 and above

• Opera 55.0.2994.44 and above

Output Interfaces

• 3G SDI

• HDMI 1.4

Storage Interface

• SD Card (functions to be developed)

Screw Mounting Hole

• ¼–20 mounting hole

Network Interface

• 10/100/1000Mbps Ethernet

• IEEE 802.3af PoE

USB Interface

• USB2.0 Type B

  • 5V/2.1A power supply

  • USB RNDIS/ECM

Set Buttons

• Preset

  • Long press：set the output video format to auto

  • Short press：rotate the preset output resolution list

• Source

  • Short press：rotate the NDI® source detected on the LAN

HDMI Output Features

• Support RGB 4:4:4, YUV 4:4:4, YUV 4:2:2 color sampling

• Support up to 48KHz 16bits 8-channel audio streams

• Support outputting video streams at the optimal resolution for NDI® source automatically

• Support the following output format

  • SD：480i59.94/576i50/480p59.94/576p50

  • HD：720p24/25/29.97/30/50/59.94/60; 1080p24/25/29.97/30; 1080i50/59.94/60

  • FHD：1080p50/59.94/60

SDI Output Features

• Support SD/HD/FHD standards

• Support YUV 4:2:2 color sampling

• Support up to 48KHz 16bits 8-channel audio streams

• Support outputting video streams at the optimal resolution for NDI® source automatically

• Support the following output format

  • SD：480i59.94/576i50/480p59.94/576p50

  • HD：720p24/25/29.97/30/50/59.94/60; 1080p24/25/29.97/30; 1080i50/59.94/60

  • FHD：1080p50/59.94/60

NDI® Source Name

• Support setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.

• Support setting board-index, from 0 to F, through the on-board rotary switch

Firmware Upgrade

• Support manual update using Web UI

LED Indicator

• Status LEDs indicate the working state of the device:

  • Power supply: on/off

  • Output signal: Output connected and signal detected/undetected

Form Factor

• 100.9mm (L) x 60.2mm (W) x 23.3mm (H)

Accessories

• USB 2.0 A to B Cable

• 5V/2.1A power adaptor

• L-bracket

Power Consumption

• 5V max current: TBD

• Max power consumption: TBD

Working Environment

• Operating temperature: 0 to 45 deg C

• Storage temperature: –20 to 70 deg C

• Relative Humidity: 5% to 90% non-condensing

UPC: 08143950201218
