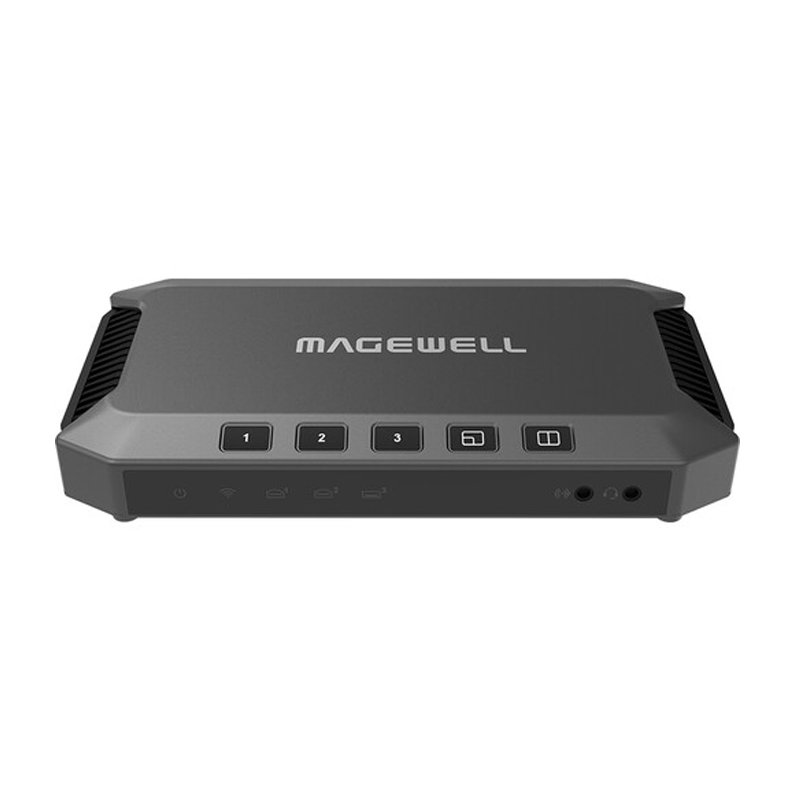

Magewell USB Fusion HDMI + USB Camera Switcher to USB, 35060

Magewell USB Fusion 2 x HDMI + 1 x USB Camera Switcher for presentations.

• Supports two HDMI inputs and one USB webcam input up to 1080p at 60fps

• Switches between sources or combines two simultaneously into one output

• Companion tablet app for more advanced features

Make your online lectures and virtual events more engaging. Our USB Fusion hardware lets you combine camera and wired screenshare inputs into attractive live presentations for remote education, webinars, live streaming, video conferencing and more.

USB Fusion is a multi-input USB video capture device with integrated source switching and layout control. Offering two HDMI inputs and one USB webcam input, USB Fusion can switch between sources or combine two inputs simultaneously into one output (picture-in-picture or side-by-side) for capturing into popular software via its USB 3.0 interface.

As a standard UVC/UAC device with automatic, driver-free installation, USB Fusion is immediately compatible with a wide range of operating systems and software applications. Users or administrators can configure and manage the hardware through its built-in web GUI, while the free USB Fusion companion tablet app provides additional features to augment your presentations.

Using the USB Fusion companion app, teachers and event hosts can create presentation playlists in advance and incorporate pre-recorded audio and other media files into their sessions. The app’s annotation tools can be used to mark up presentation materials, and the annotations can be exported to a file for sharing after the class or event. Sessions can also be recorded through the app to the USB Fusion hardware’s built-in storage for subsequent playback.

Users can import media files including images, video clips, background music, PDFs and web pages into USB Fusion’s 128GB built-in storage for incorporation into their presentations.

Users or administrators can configure and manage the hardware through its built-in web GUI.

Input Interface & Output Interface

• 2x HDMI 1.4 Type-A input

• 1x USB 3.0 Type-A input

• Supports input resolution up to 1920x1080p, 60fps

• 1x USB 3.0 Type-C output

• 1x HDMI 1.4 Type-A output

Audio Input & Output Interface

• 3.5mm audio jack for line in and headset

HDMI

• Port: 2x HDMI 1.4 Type-A port (HDMI 1 / HDMI 2)

• Resolution/frame rate: up to 1920x1080p, 60fps

• Color depth: 8-bit, 10-bit, 12-bit

• Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2

USB

• Port: 1x USB 3.0 Type-A port (WEB CAMERA 3)

• Resolution/frame rate: up to 2040x1080p, 60fps

• Codec: YUYV, H.264, MJPG, UYUV, NV12, etc.

Imported files

• Video file: MOV, MP4, MKV

• Image file: JPEG, PNG, BMP

• PDF file

• Resolution: up to 4K, 8-bit

• Codec: H.264, HEVC (H.265)

Web page Transfer protocol: HTTP, HTTPS

USB OUT (supports audio over usb)

• Port: 1x USB 3.0 Type-C port

• Resolution: 1920x1080, 1280x720, 640x480

• Frame rate: 60fps, 30fps, 15fps

• Color sampling: YUYV, NV12, ARGB

HDMI OUT (supports audio over HDMI)

• Port: 1x HDMI 1.4 Type-A port

• Output image: HDMI 1, HDMI 2, or PROGRAM image

• Output resolution: configurable, up to 2048x2048 (Actual resolution options can be limited by the negotiation result between the device and monitor.)

HDMI source

• Video/audio signal data: auto extracted

• Color space/quantization range: calibration supported

• De-interlacing: Bob, motion adaptive, motion compensated

• EDID: self-definition supported

USB source

• Format: selects according to the source

• Resolution/frame rate: selects according to the source

PDF source

• Supports turning pages, visiting hyperlinks, zooming in and out, etc.

Web page source

• Supports browsing web pages, visiting hyperlinks, zooming in and out, etc.

• Supports inputting information through the remote keyboard

Video Processing & Production

• Auto conversion of frame rate/color space

• Source switching: auto, manual

• Scene compositing: picture in picture, side by side

• Scene editing: crop, mirror, scale, rotate, and more

• Annotation: pens, shapes, text, and more, generated as notes for exporting

• Presentation: supports creating, importing, exporting, managing presentations, etc.

• Watermark: supports adding and applying text or picture (JPG, JPEG and PNG) as a watermark into the presentation
